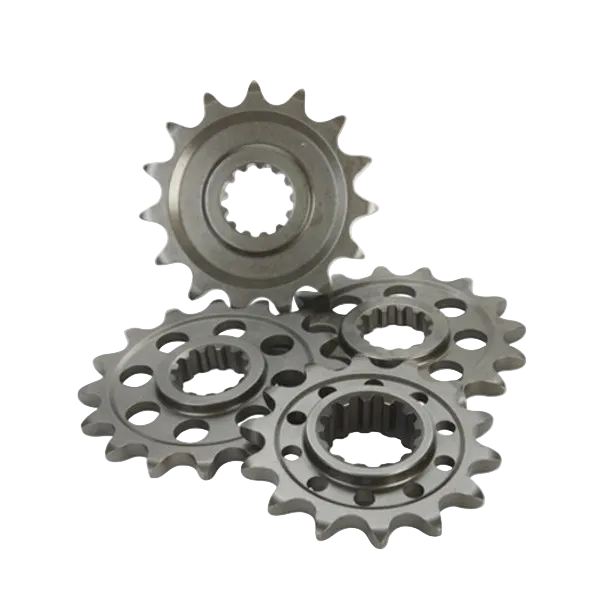

Renthal Front Sprocket Honda CBR 600

The Renthal Front Sprocket Honda CBR 600 is a standard road front sprocket for Honda CBR 600 models using a 520 chain, providing primary drive at the gearbox output shaft. This 15-tooth Renthal type 314 sprocket fits selected CBR 600 FH–FT and F2 models, and certain CBR 600 F3 applications that use this specification.

Technical specifications

• Tooth count: 15T
• Chain pitch: 520
• Mounting position: Front
• Intended use: Road / street
• Design: Standard road front sprocket (not Ultralight)
• Renthal internal type: 314 standard front chainwheel
• Material: Nickel–chromium steel alloy
• Manufacturing: CNC machined
• Typical fitment: Honda CBR 600 FH–FT 1987–1996; CBR 600 F2M–F2P 1991–1993; selected CBR 600 F3 models using type 314 520 pitch 15T sprocket

Service context

Front sprockets such as the Renthal Front Sprocket Honda CBR 600 are normally replaced with the chain and rear sprocket, or earlier if hooked teeth, tight spots or noticeable driveline lash appear. The nickel–chromium steel construction and 520 pitch setup suit road use where consistent engagement and wear resistance are important.

Installation

This front sprocket is a direct front fit on compatible Honda CBR 600 models using the specified 520 pitch and tooth count; reuse or replace locking hardware as per the service manual and check chain length and alignment after installation.
